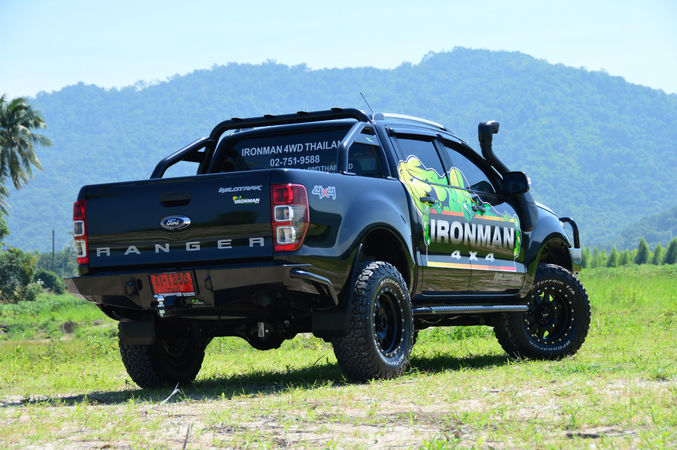

Designed to provide maximum protection your vehicle’s tub, whilst providing convenient high light jack points, integrated tow hitch and
maximising clearance, the Ironman 4x4 Rear Protection tow bar is the ultimate in rear protection and styling for your dual cab 4x4.

Made from thick 4mm steel to ensure maximum strength and protection, the bars (on all but Hilux) are coupled with stylish side tubing that provides protection for the vulnerable rear sills and sides of the tub as well as re-enforcing the bar.

Built into the bar are rear tow points, as well as two high lift jack points allow for the safe and stable application of high lift jacks on either side of the vehicle. Also included is a 50mm tow ball and tongue. The integrated hitch receiver is rated for a towing capacity of 3500kg (check manufacturers maximum towing capacity for your vehicle’s application) and there is a (separately sold) plug and play wiring loom to hook up to the vehicle, ensuring simple no cut installation for seamless compatibility. Space to install a 7-pin flat trailer plug is also incorporated into the bar to securely connect trailers and vans.

REAR PROTECTION TOW BAR STEP PLATES

Rear%20step%20tow%20bar%20plates%20studio Ironman 4x4 has developed a range of step plates to suit our popular Rear Protection Tow Bars. The step plates provide additional grip for those customers who would like to use the rear bar as an access step.

The plates are made from steel and powdercoated in a textured black finish. Easy to fit and come with the pop rivet to fix them in place, the step plates will be available as an optional extra that can be added onto the rear protection tow bar.

ARB REAR PROTECTION

Due to the long rear overhang on many modern 4×4 wagons and dual cab utes, rear quarter panels and factory bumper bars are very susceptible to damage, particularly when traversing steep, rocky terrain.

There is no better way to protect the back of your vehicle than with ARB’s range of rear protection equipment. Like all ARB products, our rear protection equipment is manufactured to extremely high standards for maximum strength and is designed specifically to suit each vehicle for the optimum fit.

SUMMIT REAR STEP TOW BAR

The Summit Rear Step Tow Bar combines class leading design, proven ARB engineering and a no compromise approach to protection and performance. Built around a tubular steel subframe that is finished in a textured black powder coat, the Summit rear bar includes an integrated tow hitch, provisions for an ARB air compressor and trailer camera wiring, 50 amp Anderson plug and trailer plug wiring.

With four easily accessible Hi-Lift jack points, the Summit rear bar is ready for the most demanding off road use.

FEATURES

Available in two models for vehicles with or without parking sensors
2.5mm press formed steel wing panels
Side wing panels can be colour coded to suit vehicle (supplied in a black powder coat)
60.3mm x 2.6mm steel tube frame

Anodised aluminium top tread plate
Moulded licence plate bezel and Narva LED licence plate light
Replaceable 2mm zinc plated stone guards to reduce damage to the inner rear face of vehicle beaver panel (vehicle dependent)
3.5t Class 4, 50mm tow hitch

SUMMIT RAW REAR STEP TOW BAR

Inspired by the Summit Rear Step Tow Bar, the ‘stripped back’ Summit Raw is engineered to tow 3.5T and has provisions for trailer plug wiring, a compressor outlet, trailer camera wiring, parking sensors and a 50amp Anderson plug.

Featuring a 60.3mm tube finished with a textured black powder coat, the Summit Raw has been designed to provide protection against the lower sections of the vehicle tub whilst retaining style cues from the Summit Rear Step Tow Bar range.

FEATURES

3.5T Class 4 50mm hitch with gusset supplied as standard
60.3mm x 2.6mm ERW tubing used for main frame. Tubing finished in textured black powder coat
Two tow chain fixture points
Provision for mounting ARB Trailer Plug wiring
Provision for mounting ARB Air Compressor outlet
Provision for mounting ARB Trailer Camera wiring
Provision for mounting 50amp Anderson plug

Anodised silver extrusion featuring ridges for grip fitted to step section
ARB Jack and Hi-Lift jack points under the 60.3mm tube
Provision for OE rear park sensors
Zinc rich primer for additional corrosion resistance
Replaceable 2mm zinc plated steel guards to alleviate stone damage to inner rear face of the beaver panel

REAR STEP TOW BAR

ARB’s Rear Step Tow Bars for utility vehicles combine an integrated, heavy duty towing system, providing a massive amount of protection for vulnerable rear panels.

Using an extremely strong, vehicle specific mounting system, the rear step tow bar will withstand immense off road punishment, whilst allowing for improved access to the tub and roof of the vehicle.

Like all ARB protection equipment, the product is finished in a durable powder coat, which doubles as an excellent base for colour coding.

KEY FEATURES

Wheel/jerry can carriers can be optioned on either side of the rear bar on most vehicles
A single carrier can be fitted, or the rear bar can be installed without any carriers at all. Neat insert panels are used in this instance
Twin 33” or a single 35” tyre can be accommodated on most vehicles
Carriers are mounted via dual shear pivots for maximum strength
Spare tyre is secured to the stud plate with a lock nut with the provision to fit a padlock to secure the stud plate to the carrier
Multi fit spare wheel stud system provides flexibility for alternate rim selection

Wing sections can be removed and replaced if they sustain damage
Incorporates heavy duty towing system, or integration with original equipment tow point on some models
Dual, laminated towing points and Hi-Lift jacking points
Extruded alloy step section
Supplied in a durable powder coat finish with optional colour coding available
Provision to mount an optional HF aerial bracket and camp light

* Certain ARB rear bar models may not incorporate all of the above features

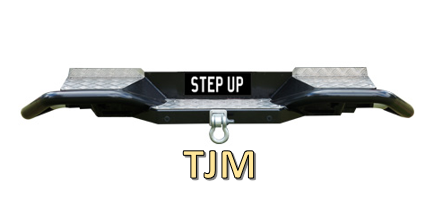

It’s when approaching and departing rises in the terrain that the rear of your vehicle is especially susceptible to heavy bumps and damage. TJM’s rear bar for any 4wd offers the best possible protection to counter this. It’s manufactured from strong 63mm diameter steel tube and is chassis mounted for incredible strength, providing your vehicle’s rear panels with solid protection. Not only is the TJM rear bar strong it also features a compliant, ADR62 certified, class 4 heavy duty towbar rated to your vehicle’s towing capacity.

Features:

50A Anderson plug mount

63mmØ steel pipework for excellent rear protection

7 Pin trailer connector included

ADR62 certified, class 4 heavy duty towbar

Durable and light weight alloy checker plate step provides easy access to the rear of the vehicle

Improved departure angle

Provision for 7 pin and 12 pin trailer connectors

Tested for maximum towball down load 350kg

Tested for maximum towbar capacity 3500kg
