CLICK FOR SUSPENSION CATALOGUE


TORSION BAR FRONT & COILS REAR
STRUTS & COILS FRONT/SHOCKS & COILS REAR
COILS FRONT & REAR
TORSION BARS FRONT & LEAF SPRINGS REAR
STRUTS & COILS FRONT / SHOCKS & LEAF SPRINGS REAR
LEAF SPRINGS FRONT & REAR





SHOCK ABSORBERS

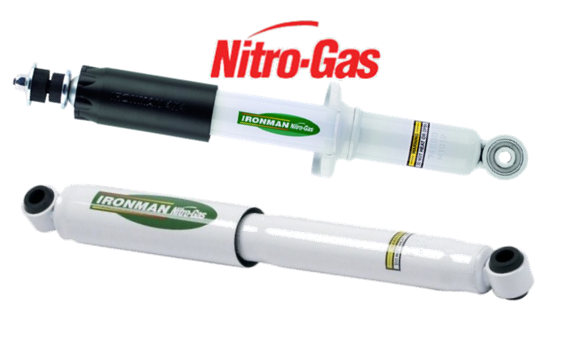

NITRO GAS STRUTS/SHOCKS
Ironman 35mm bore Nitro Gas Shocks are the rugged all round 4x4 performance shock absorber. The struts are height adjustable with the use of 5mm, 10mm or 15mm spacers. Ironman Nitro Gas Shocks provide exceptional performance for both standard and raised height 4x4’s whilst delivering superior ride control and comfort both on and off road. Improve stability when towing or carrying a load. Each and every Ironman shock absorber is force velocity tested before packaging to ensure all parts received are uniform and within operating specification. High quality materials such as German Fuchs High temp shock absorber fluid, Japanese NOK multilip seals are used. Strength and durability requirements are sorted by the use of re-enforced single piece eye rings and stems. Rubber shock absorber bushes are used by Ironman, this is to promote maximum flexibility and reduction in unwanted side load and NVH (Noise Vibration Harshness) transmission which often causes seal failures in other brand shock absorbers using Polyurethane.

FOAM CELL STRUTS/SHOCKS

Ironman Foam Cell provides the ultimate in 4x4 shock absorber design and features with 50% more oil for cooler running. Exceptional performance for both standard and raised height 4x4’s & superior ride control and comfort both on and off road is what you can expect from these shock absorbers. The shocks, designed by Ironman 4x4 suspension engineers, have been individually made component by component to produce the world’s finest offroad shock absorber. Each and every Ironman shock absorber is force velocity tested before packaging to ensure all parts received are uniform and within operating specification. High quality materials such as German Fuchs High temp shock absorber fluid, Japanese NOK multilip seals are used. Strength and durability requirements are sorted by the use of re-enforced single piece eye rings and stems. Rubber shock absorber bushes are used by Ironman, this is to promote maximum flexibility and reduction in unwanted side load and NVH (Noise Vibration Harshness) transmission which often causes seal failures in other brand shock absorbers using Polyurethane.



FOAM CELL PRO STRUTS/SHOCKS

There is nothing larger, stronger and more robust than the Ironman 4x4 Foam Cell Pro range of shock absorbers.

The Ironman 4x4 Foam Cell Pro range is designed to meet all the demands and challenges faced both on and off-road, loaded or unloaded while producing a superb ride.

The key to 4x4 shock performance is dissipating heat caused by suspension articulation and making sure the mounting points are big enough to cope with the stresses a 4x4 vehicle endures; on road, towing or off road in corrugations. With more oil and a larger surface area, Ironman 4x4 Foam Cell Pro minimize heat buildup and maintain their ideal performance no matter what you throw at them.

The Ironman 4x4 Foam Cell Pro features include:

  • 65-72mm outer body
  • 45mm diameter piston
  • 20mm chrome hardened piston rod
  • 3mm exterior tube thickness
  • 360 degree welded mounts
  • Rebuildable design
  • Threaded height adjustable strut spring seat
  • Integrated bump stop (on applicable models)
  • Single piece solid mounting base
  • Solid one piece eye ring
  • Twin Tube Construction
  • Foam Cell Design




STEERING DAMPER

FOAM CELL STEERING DAMPER

Steering dampers reduce unwanted vibration and feedback through steering systems in rough conditions.Ironman Steering Dampers are designed to vastly improve steering control of your vehicle.

FOAM CELL TECHNOLOGY

Micro-Cellular closed cell foam insert allows for the horizontal mounting orientation required by a steering damper.

35MM TEFLON BANDED PISTON

Precision shim-stack piston specifically valved by Ironman suspension engineers, banded with Teflon for smooth long life operation.

54MM TWIN TUBE BODY

Increased oil volume for improved cooling and endurance, twin tube construction protects internal components from impact damage.

SUPPLIMENTARY WELDED MOUNTS

Fusion welded and supplementary welded for maximum strength and reliability.

SINGLE PIECE BILLET EYE RINGS AND STEMS

Ultra robust design prevents breakage or bending of mounts.

VEHICLE SPECIFIC VALVING

Every part number is specially valved for each vehicle application, this ensures the steering operation is smooth and unhindered by the effects of rough road driving.

All Ironman dampers are valved 50/50 to allow for smooth operation and are ready to mount without modification to your 4×4.

HELPER SPRINGS/ADD-A-LEAF

LOAD PLUS

DESCRIPTION

Ironman 4x4 Load Plus Helper Springs are the perfect addition to any leaf sprung vehicle carrying variable loads. Load Plus provides a cost effective way to quickly and easily improve the load carrying characteristics of your vehicle. Perfect for trade vehicles, couriers or even the family vehicle, Load Plus allows users to progressively adjust the leaf springs of your vehicle to better manage heavy loads.

Load Plus is the most economical leaf spring upgrade available, providing the benefits of better load handling, whist enabling easy return to stock suspension characteristics when desired, and can be easily fitted at home with basic equipment.

Load Plus core value surrounds its ability to adjust your vehicles suspension characteristics up to its GVM. If you have an unladen vehicle, leave the load plus at a lower setting, add weight up to the vehicles GVM and progressively tension the Load Plus to maintain your vehicles driving characteristics and ride height by progressively stiffening the suspension.

ADD-A-LEAF

Ironman 4x4 Add-a-Leaf is a simple, cost effective addition to boost your existing leaf springs.
Kit includes 2x tapered leafs with anti-friction inserts, M8 and M10 replacement centre bolts and easy to follow instructions.

  • Eliminates suspension sag and supports additional load
  • Improves comfort and handling
  • Increases load carrying capability
  • Increases ride height


ALLIGNMENT & ACCESSORIES

SHACKLES & PINS

Greasable shackles and pins enable the easy re-greasing of polyurethane spring bushes.

All Ironman 4x4 shackles and pins are:

QUAD-OUTLET GREASABLE –

Greasable shackles providing an easy method of re-lubricating polyurethane bushes. Quad-Outlet ports distribute grease liberally along the bush surface ensuring you minimize wear of the bush and maximize the serviceable life of them.

SERVICABLE –

All Ironman 4x4 shackles and pins feature a serviceable bolt together construction to ensure you can maintain them and ensure they maximize their lifetime.

ANTI-INVERSION SHACKLE –

On selected models Ironman 4x4 includes a third pin on our shackles. This pin is positioned to protect the spring in the case of an inversion.

ADJUSTABLE PANHARD RODS

Used to correct axle shift after raising suspension. Adjustable as required to re-centralize the axle to vehicle.

COMPETITION SPEC

32mm solid rod used throughout.

FINE THREAD ADJUSTMENT

M32 x 2mm thread ensures precision adjustment for greater accuracy.

OEM STYLE RUBBER BUSHES

Maximum flex and durability. Replaceable OEM style bushes.

STRUT MOUNTS

Direct replacement for the OEM mounts, contains all mounting hardware*, durable natural rubber bushes and insulators. Features heavy duty washers and self locking nuts.

Facilitates the pre-assembly of complete new struts without disassembly of old unit.

*Except piston rod nut, supplied with shock absorber.

Features:

  • Fully OEM Compatible
  • Shore A 80 Duro NR Bushes & Insulators
  • Heavy Duty Washers
  • Glenloch Nuts



DRIVELINE SPACERS

An increase in driveline angles can create a vibration that is felt throughout the vehicle, this vibration is caused by excessive angle on the tailshaft.

The spacer kit lowers the centre bearing to reduce tailshaft angle and reduce vibration to a satisfactory level.

ADJUSTABLE TRAILING ARMS

Trailing arms are some of the most exposed suspension components on a lifted 4x4 and are prone to bending and breaking. Ironman 4x4 has resolved this common problem by producing heavy duty ADR approved, adjustable upper and lower trailing arms to suit GQ/ GU Patrols and 80/105 Series Landcruisers.

Providing radically stronger arms that can also correct driveline and pinion angles, the control arms feature over 5” of adjustment to suit a range of lifts and applications. The arms are on-vehicle adjustable, providing ease of adjustment once on the vehicle to ensure diff alignment is spot on!

Oh and did we mention they were tough? Featuring a solid 32mm centre, 60% increase in the thickness of the eyes surrounding the bushes and deeper penetrating welds to ensure maximum strength and structural integrity.

• ADR approved for on-road use
• Correct driveline and pinion angles
• Easy on-vehicle adjustment
• Over 5” of adjustment
• Fine M32 thread adjustment
• Solid 32mm centres
• Over-engineered construction
• Replacing original hollow units with solid 32mm
• 60% increase in eye wall thickness.
• Deeper penetrating welds
• Factory style bonded rubber bushes

5mm/10mm/15mm STRUT SPACER

For use only with Ironman 4x4 struts, available individually to adjust "side to side" or "front to back" vehicle lean due to uneven load placement.

PRECISE RIDE HEIGHT TUNING

Basic steel collar design fits over Ironman 4x4 struts to adjust spring seat height.

PRE-CONFIGURED THICKNESS

Varied thicknesses allow correct selection according to the amount of lean. Usually provides 2:1 ratio suspension lift on independent suspension vehicles.



SWAYBAR LINKS

Re-calibrates sway bar index after raising suspension.

VEHICLE SPECIFIC BOLT ON DESIGN

Easy fitment, utilises OEM mounting locations.

ADJUSTABLE LENGTH

Adjustable extension where possible depending on vehicle model.

PRACTICAL DESIGN

Strongest construction up-spec materials to avoid bending and breaking. Rubber bushes and aircraft grade spherical bearings used where possible depending on vehicle model.

ADJUSTABLE DRAG LINKS

Adjustable length rod to centralise steering wheel after suspension lift.

ADJUSTABLE LENGTH

Compatible with all suspension ride heights.

STRONGER CONSTRUCTION

Reduces likelihood of failure due to impact.

BOLT ON STEERING DAMPER MOUNTS

Steering Damper mounts can be positioned freely as required to suit suspension lift.

POLYURETHANE COIL SPACERS

Polyurethane Trim Packers are designed to be able to individually adjusted “side to side” or “front to back” vehicle lean due to uneven load placement.

INJECTION MOULDED POLYURETHANE

High density injection moulded polyurethane material ensures precise location and a durable seat with the spring.

PRE-CONFIGURED THICKNESS

Varied thicknesses allow correct selection according to the amount of lean. Provides 1:1 ratio suspension lift on solid axle vehicles.

SWAY BARS

Sway bars are designed to maximise tyre contact on the road whilst minimising body roll.

Ironman 4x4's heavy duty sway bars ensure performance and safety when cornering. Ironman 4x4 HD Sway Bars ensure that the load is distributed evenly over your tyres delivering better grip and a more comfortable driving experience.

CASTER CORRECTION PLATES

Used to correct caster angle after rising suspension beyond 100mm (4")

PRE-CONFIGURED CASTER CORRECTION

Fixed 5 degree offset models suit 100mm (4") to 150mm (6") lifted suspension.

OFFSET CASTER CORRECTION BUSHES

Available in adjustable or fixed offset designs, used to correct caster angle after raising suspension under 100mm (4").

PRE-CONFIGURED CASTER CORRECTION

Fixed 2 degree offset models suit 50mm (2") lifted suspension.

ADJUSTABLE CASTER CORRECTION

Adjustable offset suit a wide range of lift heights up to 100mm (4").

HIGH DENSITY MATERIALS

Vehicle specific rubber or polyurethane material.

EXTENDED BRAKE LINE HOSES

Longer brake hoses used with suspension lifts over 100mm (4").

DOT SAE J1401 STANDARDS APPROVED CONSTRUCTION

OEM style reinforced rubber hose for safety.

EXTENDED LENGTH

Extended length allows for greater suspension travel.

CAMBER CORRECTION

When raising or lowering a vehicle with McPherson Strut suspension, an increase in negative or positive camber will result, how much depends on the ride height.

Ironman 4x4 Adjustable Camber Bolts are a universal solution to provide up to ± 1.75 degrees camber adjustment in a wide range of strut suspension vehicles, especially soft-roaders.

Set contains one pair of essentric bolts, enough to suit one vehicle and are an essential product when raising or lowering a vehicle equipped with McPherson Strut suspension.

Easy installation with detailed fitting instructions included. Adjustment is gained by rotating the head of the essentric cam bolt till desired result is achieved.

Best results obtained when used in conjunction with suitable wheel alignment equipment.

  • Ultra High Tensile 10.9 Grade Steel
  • Perma-tight nut and thread
ABS WIRE & AXLE PROTECTION


DESCRIPTION

This kit is intended to reduce the likelihood of damage to the ABS / Wheel Speed sensor wire located in front of the rear axle housing
